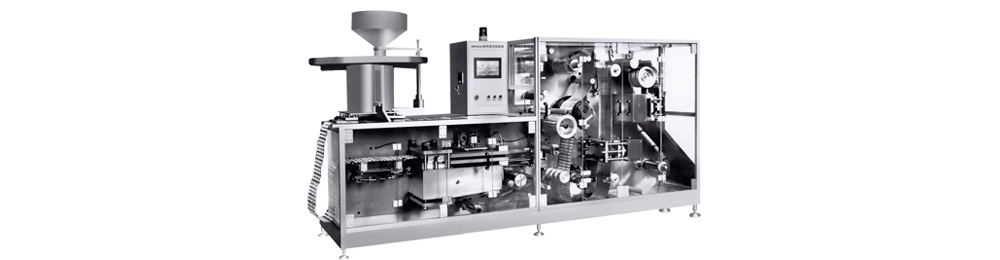

            DPH260輥板式泡罩包裝機
            DPH260 ROLLER AND PLATE COMBINING TYPE  BLISTER PACKING MACHINE

               特點
                板式正壓吹塑成型、輥式熱封、包裝效率高;
                可與通用上料機、掉頭上料機、圓盤上料機配套使用;
                PLC控制無級變頻調速,調整范圍廣泛,傳動噪音低,伺服電機控制;
                光電踉蹤、浮動對標;
                自動打批號,壓斷裂線;
                主要元器件均采用進口;
                整機采用全封閉方式,符合GMP要求。
                Features
                The plate forming by positive pressure the  roller type heating sealing having higher packing speed.
                It is possible to form a complete set with  general feeders turning feeders and disk feeders.
                Controlled by PLC the stepless frequency  conversion variable speeds having wide ad-justment range extreme low noise.
                Photoelectric tracking device and floating  alignment mark.
                Automatically printing serial numbers and  pressing breaking line.
                Main components are imported.
                The machine is totally-enclosed accords  with GMP requirements.


               適用范圍
                各種規格的膠襄、素片、糖衣片、膠丸及異型片,巧克力豆、口香糖等固態物料。
                Application
                Applicable for different specifications of  capsules tablets sugar- coated tablets pills and grotesque tablets chewing gum  and chocolate beans etc.small food.




               技術參數 Specifications





                | 最大成型深度 Max forming depth |
                10mm |


                | 沖裁次數 Cutting frequency |
                ≤120次/分(times/Min.) |


                | 包裝效率 Packing speed |
                500板/分(plates/Min.) |


                | 包裝材料 Packing material |
                PVC 260×0.25mm |


                | 最大步進距離 Max inching |
                215mm |


                | 耗氣量 Air consumption |
                300L/Min. |


                | 耗水量 Water consumption |
                6L/Min. |


                | 電源總功率 Installed power |
                13kW |


                | 電壓 Voltage |
                380V/50Hz |


                | 外形尺寸(長×寬×高)S ize (L×W×H)? |
                3500×1050×1800mm |


                | 重量 Weight |
                3000kg |


             |
